Extracted power supply board « Your Warranty Is Void.com

Extracted power supply board

by Zeus on Jan.19, 2010, under

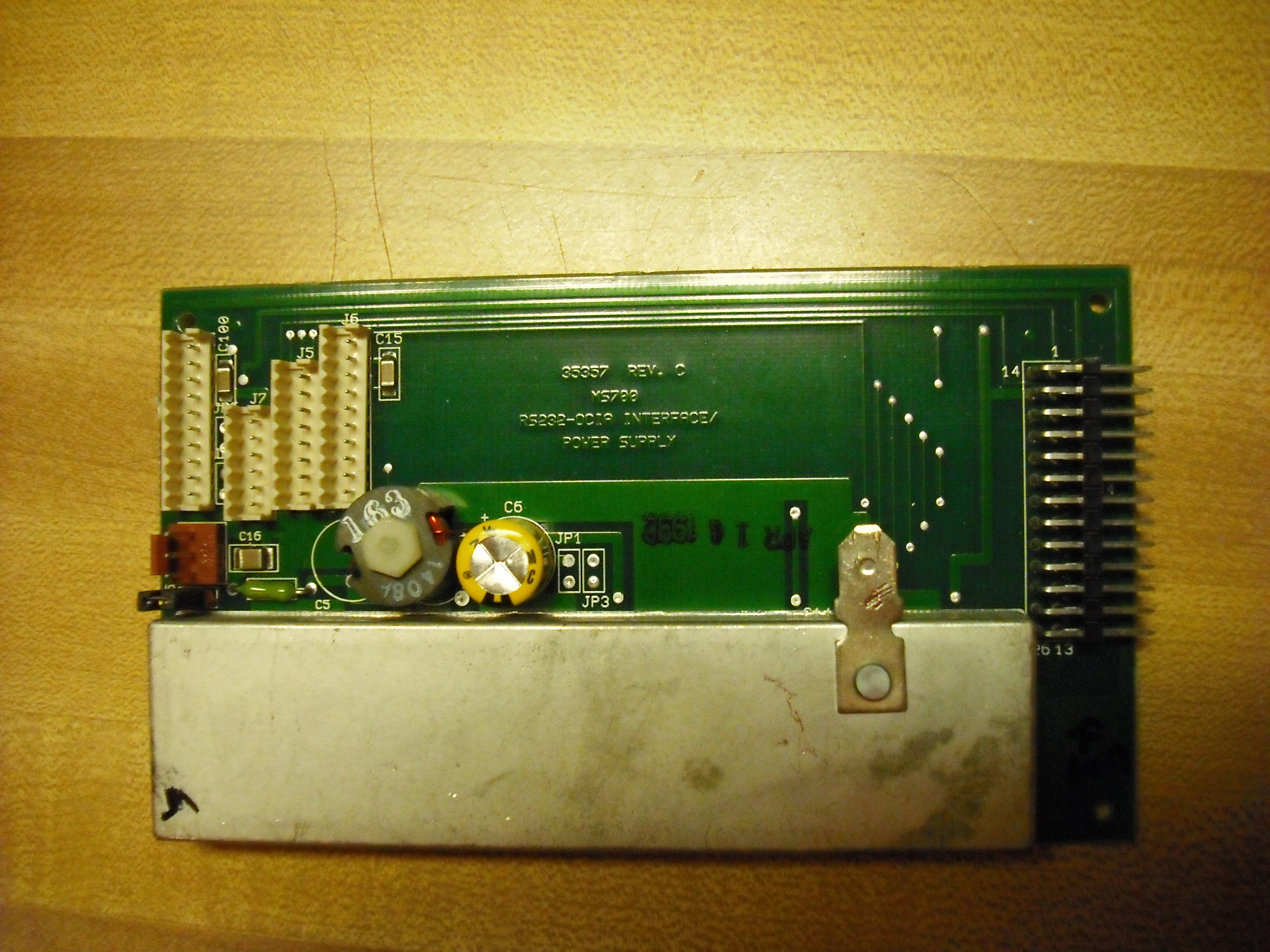

This is a shot of the extracted power supply board. The little brown connector is power for the scanner. The center pin is ground, with the bottom pin being positive (11-20VDC)
