Processor board

by Zeus on Jan.19, 2010, under

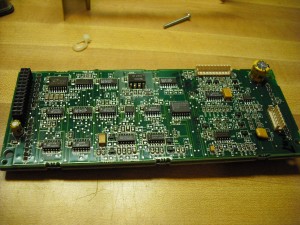

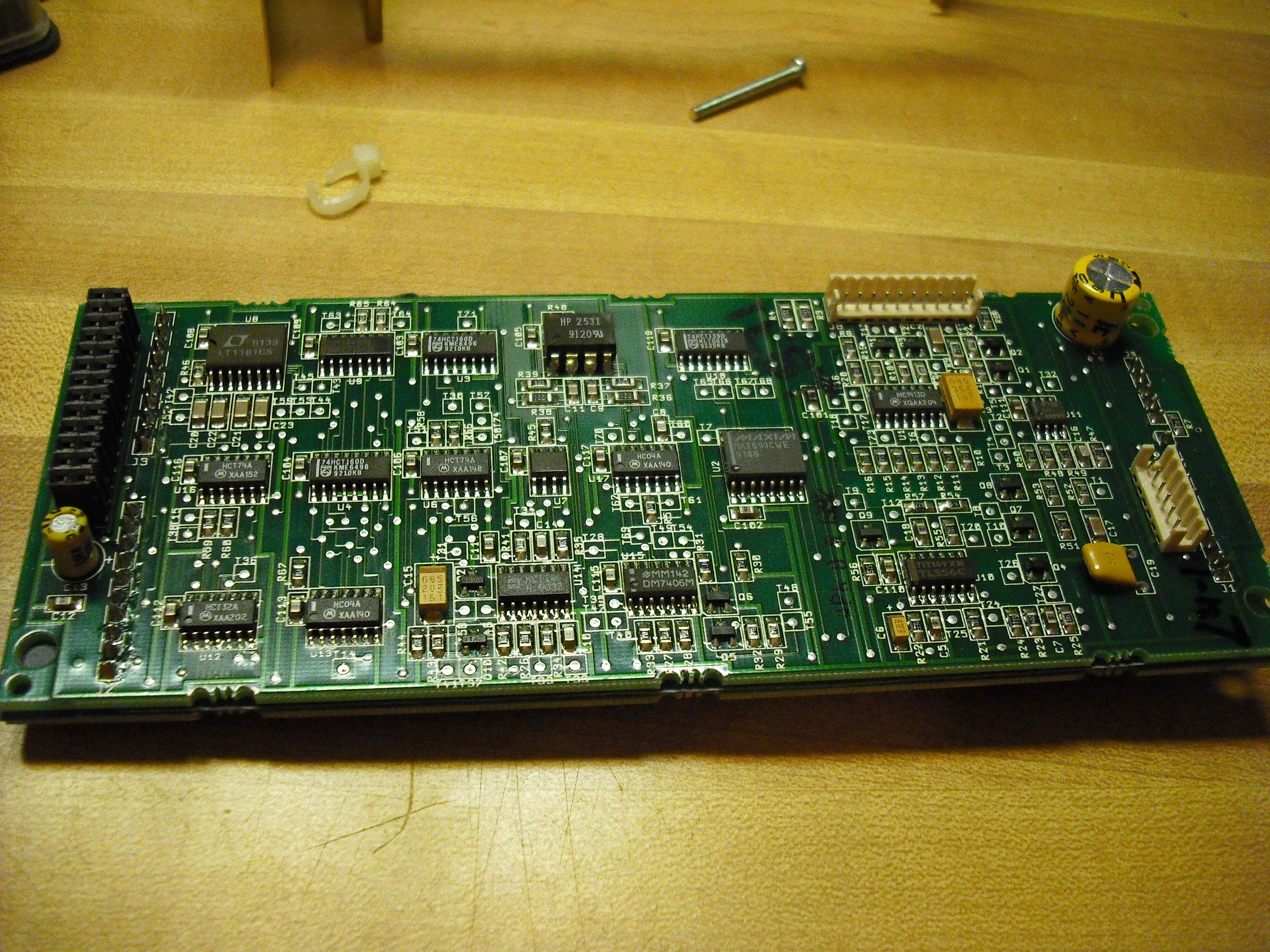

This is the processor board (facing inside) and has the connector from the power supply board (far left), front panel (top right) and the orange cable to the controller board (lower right)
