Processor board close up

by Zeus on Jan.19, 2010, under

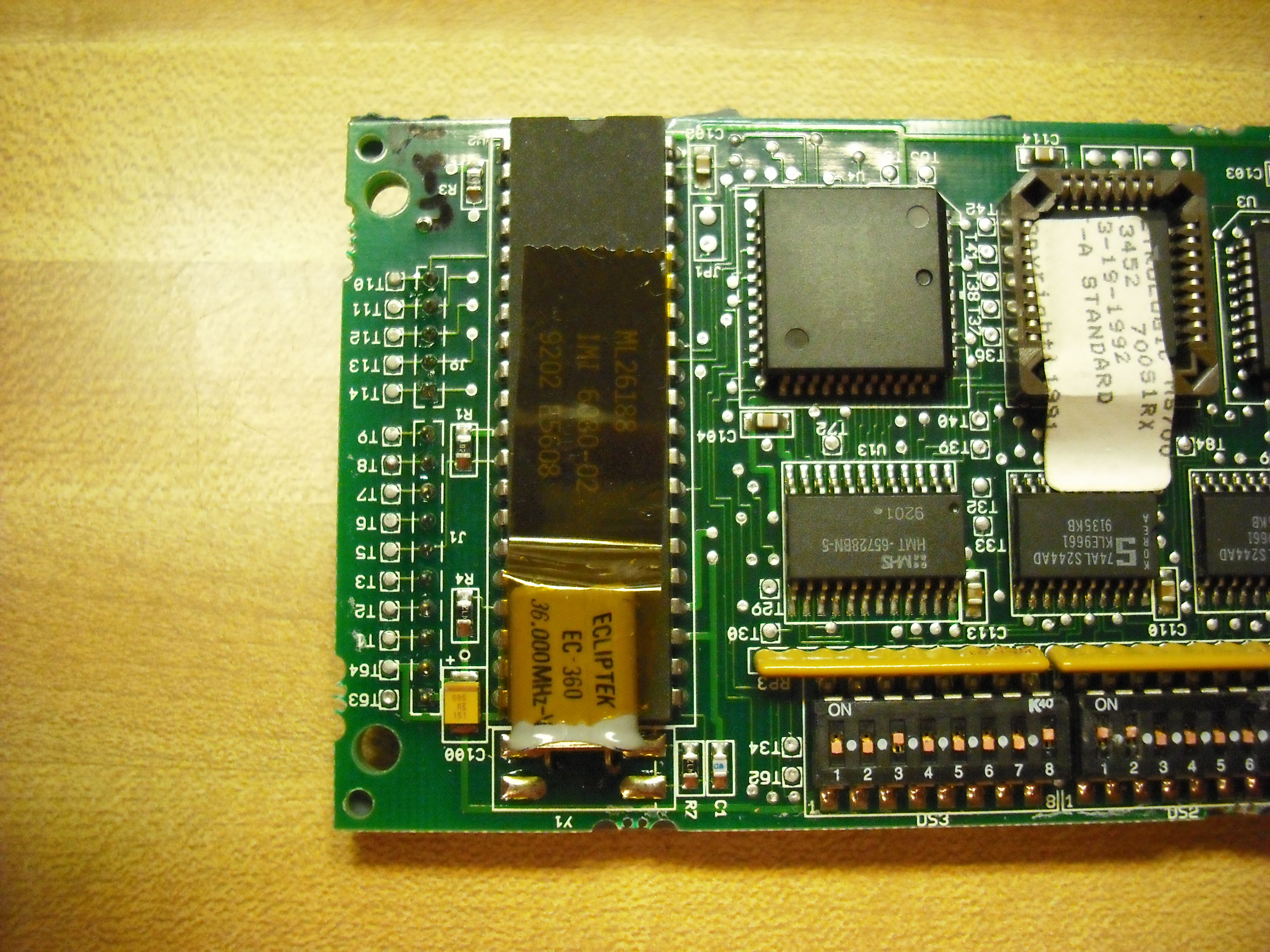

This is a close-up of the processor board towards the power supply board connector.
