Mod the Nerf Maverick to eject chamber right

by on Nov.24, 2009, under Hardware, Toys and Games


nerf

Well, I will admit that I’ve been slacking a lot.  There are posts that need to be posted, and I’ve been extremely busy at work.  So, to make up for it, today’s going to be a two-post day!.    In this post, I’ll demonstrate how to modify the Nerf Maverick chamber to work properly like a real revolver.  Read on for a complete step-by-step guide to this basic Nerf mod.

Foreword:

I recently got my hands on the new Maverick which is Nerf’s response to the demand for a revolver-type handgun for nerf fanatics. The drawback is while they could have gone all the way with their design they did not pay enough attention to one critical issue: loading time. The Nerf Maverick is a pain to load because you have to pop out the chambers as with a standard revolver but  the Maverick’s chambers only come out about an inch, giving you visibility to put in about 2 darts without needing to rotate the chamber.   My hack will give you visibility to 4 of the 6 chambers in the gun.

This gun shoots remarkably well given the really short pneumatic piston in comparison to the other guns I have.  This leads me to wonder why the other ones suck as far as range is concerned, but that will have to wait for another day and another hack.


Required Tools and Parts:

  • A fine-tipped screwdriver
  • A knife of some sort
  • A $3,000 CDROM repair tool. (straightened paper clip.)
  • Optional: A sharpie or other marking pen
  • Total Cost: ~$8.99 (there are no parts required.)


    Pre-Analysis

    The Nerf Maverick’s chambers only come about an inch as shown below. I think we could do better.load1

    Disassembly

    The disassembly starts off with removal of the grey slide at the top of the gun. Lay the gun on the table with the chambers pointing to the right, remove the three screws and gently remove the half of the slide facing you. Set it aside.

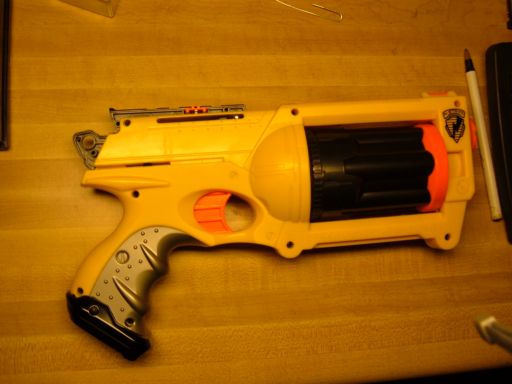

    slideoff

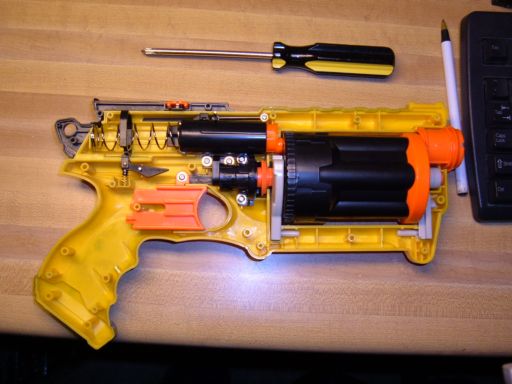

    Now you are safe to remove the rest of the screws. When I came across this step, I had to use the knife to gently seperate the two halves. You will want to keep that other half of the slide against the other half of the plastic frame as there is a small spring that is connected to the silver pin that makes up the slide. This is not the end of the world if you manage to seperate it, but you will need to use the paper clip to re-string it if it flies off. Thankfully the other end is attached to the frame by a screw.open

    Now that you have the gun opened, you will need to carefully remove the chambers. This can be done, but it will take a bit of finesse. Below is the front of the chamber assembly.

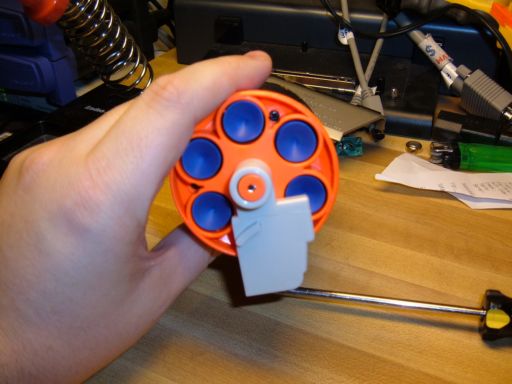

    revolver-front1

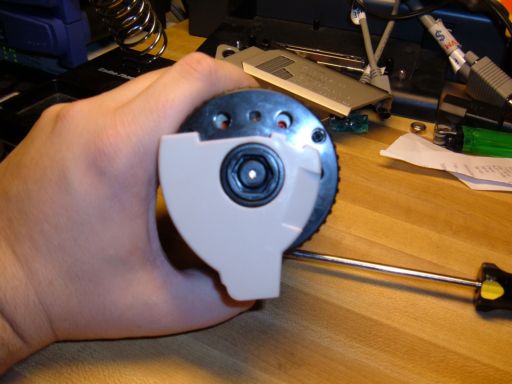

    This is the back of the revolver. The hexagonal shape matches with the orange hexagon advancer in the body of the gun.
    revolver-back
    This is the mating orange advancer and the pneumatic piston for firing the darts.
    chamber1

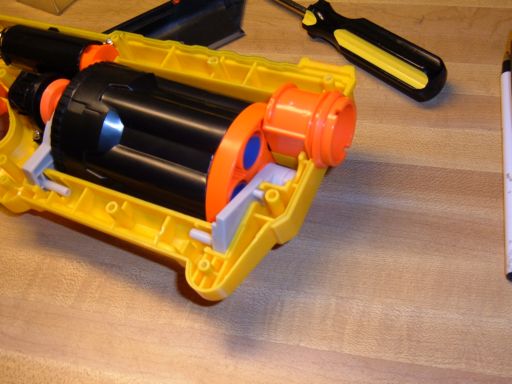

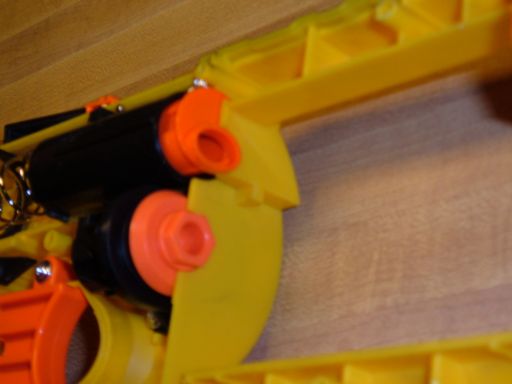

    This picture shows the chamber in the gun, with the chamber in place for firing. By messing around with it a bit, we can see the plastic that needs to be removed.
    chamber2

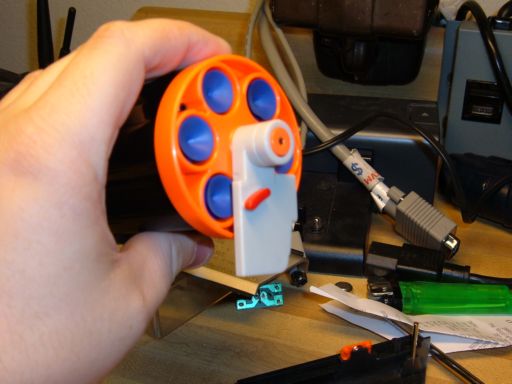

    With the chamber seperated, take the red sharpie and highlight the rounded plastic edge to remove.
    remove2

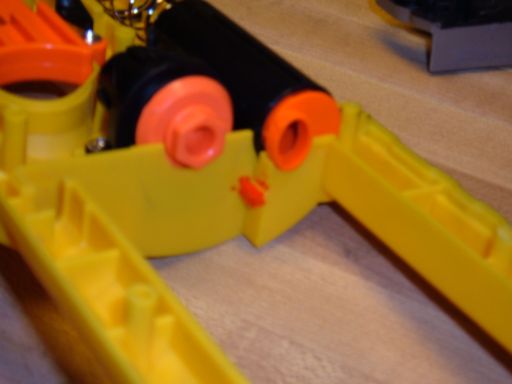

    Take the sharpie and highlight the little square next to the advancer and the piston.
    remove1

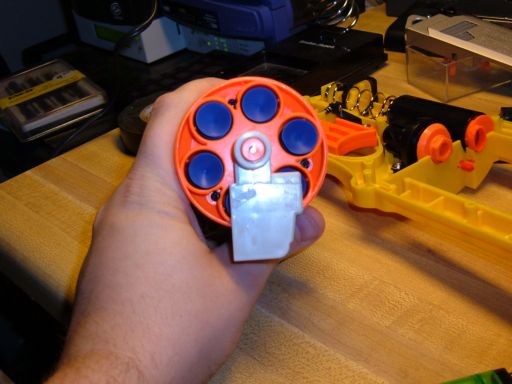

    Take your knife and remove the two pieces of plastic. Be warned that the plastic is tough, so don’t cut yourself. You want to get it as smooth as possible so that way it doesn’t foul up the chamber’s movements. This is a shot of the chamber with the plastic removed.
    removed-front

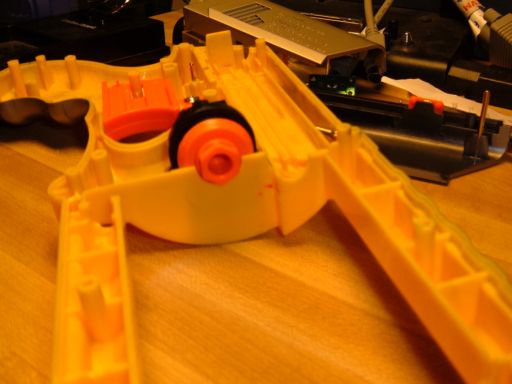

    And another shot of the plastic removed next to the advancer.
    removed-chamber

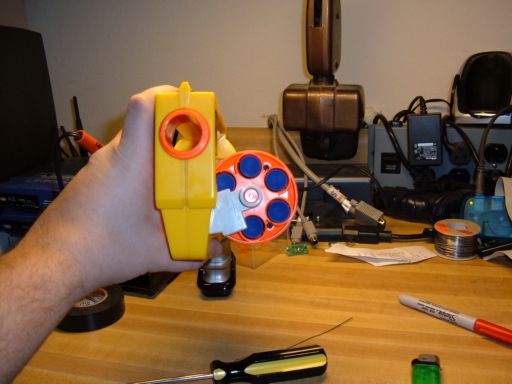

    Reassemble the gun, and revel in the fact that your Nerf revolver now works closer to a real revolver!

    muchbetter

    Conclusion

    While I’m not quite sure why Nerf didn’t implement this in their original design, it wasn’t exactly rocket surgery to make it happen.  I think that this makes the Maverick this much more useful as when you’re in a firefight with the rest of the members of the household, the last thing you have time to do is reload. 😛

    Happy Nerfing, everyone!
